Parent-Child Relationships

Parent-Child Relationships enable tracking physical asset hierarchies - assets inside other assets, components within assemblies, and nested structures.


Understanding Parent-Child Relationships​

What is a Parent-Child Relationship?​

A Parent-Child Relationship represents physical containment:

  • Parent Asset = Container (ship, machine, building)

  • Child Asset = Item inside parent (engine, part, equipment)

Examples:

  • Ship (Parent) → Engine (Child) → Fuel Pump (Grandchild)

  • Server Rack (Parent) → Server (Child)

  • Building (Parent) → HVAC System (Child)

  • Vehicle (Parent) → GPS Tracker (Child)

Physical Containment: Child physically exists inside parent

Parent-Child vs. Classification​

Common Confusion: Parent-Child ≠ Classification

| Concept

|

Purpose

|

Example

| | --- | --- | --- | |

Classification

|

Logical categorization

|

Ship is classified as "Cargo Vessel"

| |

Parent-Child

|

Physical containment

|

Engine physically inside Ship

|

Classification = "What type is it?"
Parent-Child = "What is it inside?"

Both Can Coexist:

  • Ship: Classification = Cargo Vessel / Panamax

  • Engine: Classification = Marine Engine / Diesel

  • Relationship: Engine (Child) inside Ship (Parent)

Key Concepts​

Hierarchy Terminology​

Parent Asset:

  • Asset that contains other assets

  • Example: Ship contains engine

  • Can have multiple children

  • Can itself be a child (e.g., Engine is parent to Fuel Pump, child to Ship)

Child Asset (Subasset):

  • Asset physically inside parent

  • Example: Engine inside ship

  • Has exactly one parent (cannot have multiple parents)

  • Can have its own children (grandchildren to original parent)

Root Asset:

  • Top-most parent in hierarchy

  • Has no parent itself

  • Example: Ship (if it's not inside anything else)

Standalone Asset:

  • Asset with no parent and no children

  • Independent item

  • Most assets start as standalone

Hierarchy Levels​

Asset Pro tracks hierarchy depth:

Hierarchy Level 1:

  • Root assets (no parent)

  • Example: Ship SS-001

Hierarchy Level 2:

  • Children of root

  • Example: Engine inside Ship

Hierarchy Level 3:

  • Grandchildren

  • Example: Fuel Pump inside Engine

Hierarchy Level N:

  • Great-grandchildren and beyond

  • No depth limit

  • Example: Sensor inside Fuel Pump inside Engine inside Ship (Level 4)

Creating Parent-Child Relationships​

Assign Parent on Child Asset​

Step-by-Step:

  1. Open Child Asset Card

    • Example: Asset "ENG-001" (Engine)

  2. Navigate to Physical Hierarchy Section

    • Locate Parent Asset No. field

  3. Assign Parent

    • Click Parent Asset No. field

    • Press Alt+↓ for lookup

    • Or type parent asset number

    • Example: "SS-001" (Ship)

  4. System Validates

    • Checks parent exists

    • Verifies same holder

    • Ensures no circular reference

    • Validates classification hierarchy (if applicable)

  5. Relationship Created

    • Parent Asset No. = SS-001

    • Hierarchy Level = 2 (child of root)

    • Root Asset No. = SS-001

    • Relationship Entry logged (Attach event)

  6. Save

    • Close Asset Card

    • Relationship persists

Detaching Assets​

What is Detaching?​

Detaching = Removing parent-child relationship

Result: Child becomes standalone asset (or can be attached elsewhere)

When to Detach:

  • Component removed from assembly

  • Permanently separate assets

  • Reorganize hierarchy

  • Transfer child to different location

  • Asset decommissioned

Effect:

  • Parent Asset No. = blank

  • Hierarchy Level = 1

  • Root Asset No. = blank

  • Relationship Entry created (Detach event)

Detaching from Asset Card​

Method 1: Clear Parent Field

  1. Open Child Asset Card

  2. Navigate to Parent Asset No. field

  3. Clear field (delete value)

  4. Save

  5. Result: Detached, Relationship Entry logged

Method 2: Detach Action

  1. Open Child Asset Card

  2. Click Actions → Detach from Parent

  3. Confirmation message

  4. Result: Detached, Relationship Entry logged


Detaching from Asset List​

Bulk Detach:

  1. Open Asset List

  2. Select multiple child assets (Ctrl+Click)

  3. Click Actions → Detach from Parent

  4. All selected assets detached

  5. Count of detached assets shown

Use Case: Decommissioning parent asset, freeing all children

Relationship History​

Every attach and detach creates a Relationship Entry.

What is Relationship Entry?​

Relationship Entry = Permanent audit log of parent-child changes

Entry Types:

  • Attach: Child attached to parent

  • Detach: Child freed from parent

Cannot Be Deleted: Audit trail


Relationship Entry Fields​

Entry No. (Integer)

  • Unique identifier

  • Auto-assigned

Entry Type (Enum)

  • Attach or Detach

Asset No. (Code, 20 characters)

  • Child asset being attached/detached

Parent Asset No. (Code, 20 characters)

  • Parent asset involved

Posting Date (Date)

  • When relationship change occurred

Holder Type/Code at Entry (Holder info)

  • Child's holder at time of attach/detach

  • Historical snapshot

Reason Code (Code, 10 characters)

  • Why relationship changed

  • Example: INSTALL, REMOVE, DECOMMISSION

Description (Text, 100 characters)

  • Auto-generated or manual description

  • Example: "Attached to parent SS-001"

Transaction No. (Integer)

  • Groups related entries (future use)

User ID (Code, 50 characters)

  • Who created entry

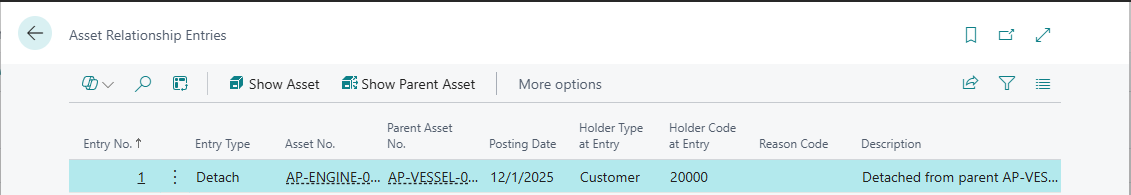

Viewing Relationship History​

From Asset Card:

  1. Open Asset Card

  2. Click Actions → Relationship History

  3. Relationship Entries page opens

  4. Filtered to this asset

  5. Shows all attach/detach events

Example History:

Entry Date Type Parent Asset Description 1 2024-01-15 Attach SS-001 Attached to parent SS-001 2 2024-03-20 Detach SS-001 Detached from parent SS-001 3 2024-04-10 Attach SS-002 Attached to parent SS-002

Interpretation: Engine moved from Ship SS-001 to Ship SS-002

Validation Rules​

Asset Pro enforces strict parent-child rules:

Rule 1: Cannot Be Own Parent​

Rule: Asset No. ≠ Parent Asset No.

Error: "Cannot assign asset as its own parent"

Why: Prevents logical error

Rule 2: No Circular References​

Rule: Cannot create circular hierarchies

Examples of Invalid:

  • A → B → A (parent becomes grandchild)

  • A → B → C → A (circular chain)

Validation: System walks hierarchy to detect circles

Error: "Circular reference detected"

[Screenshot Placeholder: Circular reference error]

Rule 3: Same Holder Required​

Rule: Child and parent must have same current holder

Why: Child physically inside parent - cannot be at different location

Example Invalid:

  • Parent: Location WAREHOUSE

  • Child: Customer C-001

  • Error: "Cannot assign asset ENG-100 to parent SS-001. Parent is at Location WAREHOUSE, but child is at Customer C-001."

Solution:

  1. Transfer child to parent's location first

  2. Then assign parent relationship

Rule 4: Same Industry Required​

Rule: Child and parent must be in same industry

Why: Maintains classification consistency

Example Invalid:

  • Parent: Industry = FLEET

  • Child: Industry = IT

  • Error: Industry mismatch

Solution: Keep assets in same industry within hierarchy

Rule 5: Cannot Delete Asset with Children​

Rule: Parent with children cannot be deleted

Why: Would orphan children

Workaround:

  1. Detach all children first

  2. Then delete parent (if other conditions met)

Or: Block asset instead of deleting

Rule 6: Cannot Transfer Child Separately​

Current Rule: Child with parent cannot be transferred independently

Why: Child moves with parent physically

Workaround:

  1. Detach child from parent

  2. Transfer child to new holder

  3. Transfer parent to new holder (if needed)

  4. Re-attach child to parent (if same holder)

Future Enhancement: Automatic child transfer with parent

Viewing Hierarchies​

Asset Pro provides multiple ways to visualize hierarchies:

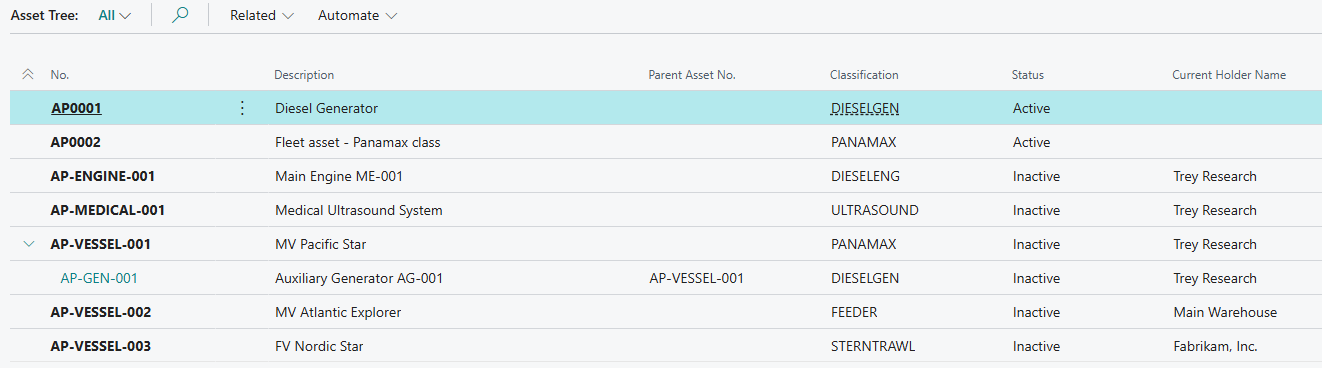

Asset Tree Page​

Dedicated tree view for hierarchical visualization:

How to Access:

Method 1: From Role Center

  1. Open Asset Manager Role Center

  2. Navigate: Assets → Asset Tree

Method 2: From Asset Card

  1. Open Parent Asset Card

  2. Click Actions → Children Assets

  3. Tree view of descendants

Method 3: Direct Search

  1. Press Alt+Q

  2. Enter "Asset Tree"

  3. Opens tree view (all assets)


Asset Tree Features​

Hierarchical Display:

  • Indentation shows hierarchy level

  • Parent rows expandable/collapsible

  • Visual hierarchy structure

Columns:

  • No.

  • Description

  • Hierarchy Level

  • Parent Asset No.

  • Current Holder

  • Status

Filtering:

  • Filter by Root Asset No. (show entire family)

  • Filter by Industry

  • Filter by Holder

Expanding/Collapsing:

  • Click + to expand children

  • Click - to collapse

  • See full hierarchy or just roots

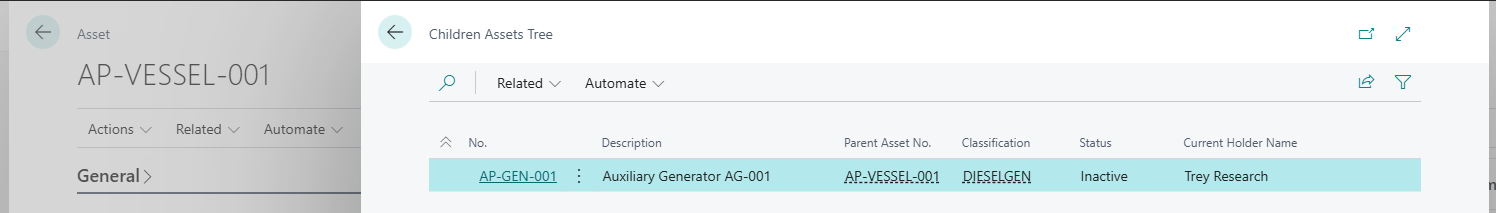

Children Assets Action​

From Parent Asset Card:

  1. Open Parent Asset Card

  2. Click Actions → Children Assets

  3. Asset Tree opens

  4. Filtered to descendants of this asset only

  5. Shows children, grandchildren, etc.

Use Case: View all components within a specific parent

Example:

  • Open Ship SS-001 card

  • Click Children Assets

  • See all engines, pumps, sensors within that ship


Use Cases​

Use Case 1: Tracking Ship Components​

Scenario: Maritime company tracks vessels and engines

Hierarchy:

SS-ATLANTIC (Cargo Ship) - Root ├─ ENG-MAIN-001 (Main Engine) │ ├─ FP-001 (Fuel Pump) │ └─ FP-002 (Fuel Pump) ├─ ENG-AUX-001 (Auxiliary Engine) └─ GPS-001 (GPS System)

Benefits:

  • Track which engines in which ship

  • Component-level maintenance history

  • Replacement tracking

  • Spare parts planning

Use Case 2: Server Rack Equipment​

Scenario: IT department tracks servers and network equipment

Hierarchy:

RACK-01 (Server Rack) ├─ SRV-WEB-01 (Web Server) ├─ SRV-WEB-02 (Web Server) ├─ SRV-DB-01 (Database Server) └─ SWITCH-01 (Network Switch)

Benefits:

  • Know which servers in which rack

  • Power usage tracking

  • Space utilization

  • Decommissioning planning

Use Case 3: Medical Equipment Components​

Scenario: Hospital tracks MRI scanners and components

Hierarchy:

MRI-VIDA-01 (MRI Scanner) ├─ MAGNET-001 (Magnet Assembly) ├─ COIL-HEAD-001 (Head Coil) ├─ COIL-BODY-001 (Body Coil) └─ CONSOLE-001 (Control Console)

Benefits:

  • Component-level service tracking

  • Warranty management per component

  • Replacement part ordering

  • Compliance tracking

Use Case 4: Building Equipment​

Scenario: Facilities management tracks building systems

Hierarchy:

BUILDING-A (Office Building) ├─ HVAC-001 (HVAC System) │ ├─ COMP-001 (Compressor) │ └─ FAN-001 (Air Handler) ├─ ELEVATOR-001 (Passenger Elevator) └─ GENERATOR-001 (Backup Generator)

Benefits:

  • Building-level asset grouping

  • System-level maintenance

  • Energy usage tracking

  • Capital planning

Advanced Scenarios​

Reorganizing Hierarchies​

Scenario: Move component from one parent to another

Example: Move Engine from Ship A to Ship B

Steps:

  1. Ensure Same Holder:

    • Check Ship A holder: Location WAREHOUSE

    • Check Ship B holder: Location WAREHOUSE

    • Both at same location ✓

  2. Detach from Ship A:

    • Open Engine card

    • Clear Parent Asset No. (was Ship A)

    • Save (logs Detach event)

  3. Attach to Ship B:

    • Parent Asset No. = Ship B

    • Save (logs Attach event)

Result: Engine now child of Ship B

History: Relationship Entries show complete move history

Temporarily Detaching for Service​

Scenario: Engine removed from Ship for overhaul, then reinstalled

Steps:

  1. Initial State: Engine in Ship at Location WAREHOUSE

  2. Remove for Service:

    • Detach Engine from Ship

    • Transfer Engine to Vendor V-001 (Repair Shop)

    • Transfer Ship to Customer C-001 (Ship operates without engine)

  3. Service Complete:

    • Transfer Engine back to Location WAREHOUSE

    • Transfer Ship back to Location WAREHOUSE

  4. Reinstall:

    • Attach Engine to Ship (both at WAREHOUSE)

History:

  • Detach entry (step 2)

  • Holder entries for both assets (steps 2-3)

  • Attach entry (step 4)

  • Complete audit trail

Multi-Level Reassignment​

Scenario: Moving entire subasset tree (parent with children) to new parent

Example: Move Engine (with its Pumps) from Ship A to Ship B

Current Process:

  1. Note Engine's children (Pump 1, Pump 2)

  2. Detach Pumps from Engine

  3. Detach Engine from Ship A

  4. Attach Engine to Ship B

  5. Attach Pump 1 to Engine

  6. Attach Pump 2 to Engine

Future Enhancement: Automatic child movement

Troubleshooting​

Problem: Cannot Assign Parent - Different Holder​

Cause: Child and parent at different locations

Solution:

  1. Note parent holder

  2. Transfer child to same holder

  3. Assign parent relationship

Example:

  • Parent at Location WAREHOUSE

  • Child at Customer C-001

  • Transfer child to WAREHOUSE

  • Assign parent

Problem: Circular Reference Error​

Cause: Trying to create circular hierarchy

Example: A → B, then trying to make B → A

Solution:

  • Review hierarchy

  • Cannot have circles

  • Choose linear parent-child path

Problem: Cannot Delete Asset - Has Children​

Cause: Asset has child assets

Solution 1 (Detach first):

  1. Detach all children

  2. Delete asset

Solution 2 (Block instead):

  1. Set Blocked = TRUE

  2. Set Status = Decommissioned

  3. Preserve history

Problem: Hierarchy Level Incorrect​

Cause: Stale calculation (rare)

Solution:

  1. Detach from parent

  2. Re-attach to parent

  3. Recalculates hierarchy level

Problem: Root Asset No. Blank on Child​

Cause: Parent chain broken or circular

Investigation:

  1. Check parent exists

  2. Walk up parent chain manually

  3. Look for circular reference

  4. Fix broken link

Parent-Child relationships represent physical containment, not logical classification. Use hierarchies when tracking assets inside other assets (engines in ships, servers in racks). For logical organization (types and categories), use Classifications instead!
